Tableform H20 Slab Formwork System for Floor Slab Construction Efficiently and Easily Operation
Outline
Tableform H20 slab formwork is prepared for application under the floor slab, in particular, due to its ready to use function and length adjustable prop, the system can be quickly adapted to different slab heights and slab layout.Tableform H20 slab formwork is a cost-effective system for slab construction, one-time assembly and repeatly use, no assembly place need to be available. Main parts of table form include shuttering, timber beam H20 and adjustable props,the basic dimension under the slab tables include 2.4mx4.8m,2.4mx3.6m,2.0mx4.8m and 2.0mx3.6m, Customized table dimension is also possible to meet specific projects. Loading capacity of prop shoring per leg can reach 20kN to 30kN.
Main components
• Adjustable props
• Shuttering
• Timber beam H20
• Connecting head
Specification
1. Table formwork dimension
2.4mx4.8m
2.4mx3.6m
2.0mx4.8m
2.0mx3.6m
2. Slab thickness up to 50cm
3. Floor height clearance up to 4m
4. Horizontal transportation via transportation fork or trolley
5. Vertcal transportation via crane lift

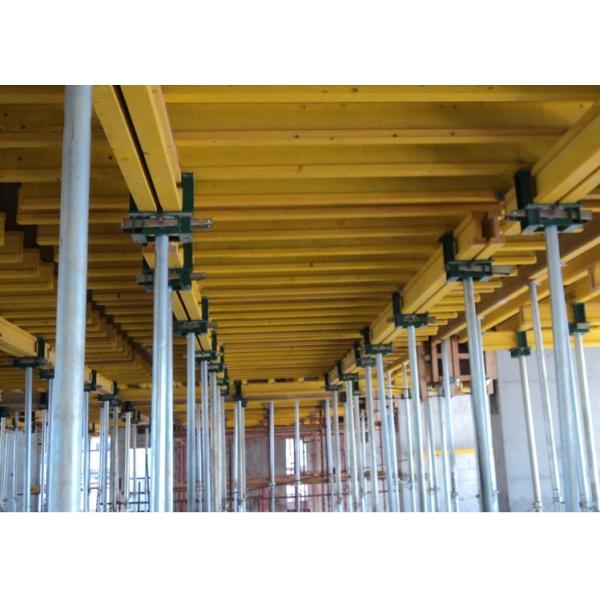

Applications
FAQ
Q 1, Are you a factory or a trading company?
Yes,We are professional factory.
Q 2.Do you have strong techinicans teams?
Yes,We have 9 project designers, 4 product development engineers and 10 technical guidance engineers. The whole team has more than 20 years of engineering experience
Q 3. Do you accept OEM services?
Yes, we could make the customized products according to your drawings.
Q 4. What is your production capacity?
3000Tons per month.
Q 5. Do you have test report?
Yes, we have done many test by TUV Rheinland(Shanghai) Co.,Ltd.
Q 6. How long is your delivery.
Usually 20-25days after deposit confirmed.
