Safety Construction Timber Beam H20 Wall Formwork Used for Most Building
Product Description
Timber beam H20 wall formwork is mainly consisted of timber beam H20, steel waler and plywood. It can be easily satisfied to different sizes and shapes according to specific projects. It is efficient and cost-effective and widely used in the sites all over the world.
The system is convenient for construction and easy to control the quality. It can provide an excellent concrete finish surface for any vertical structure,including walls,piers,abutments,etc.
Technical Specification
* Basic unit sizes(width x height): 1..22m x 2.44m,1.25m x 2.5m, 1.5m x 3.0m.
* Customized unit sizes according to projects requirment.
* Up to 6.5m wall height with just one pouring.
* Main components: 18mm or 21mm plywood; H20 timber beam; steel waler.
Features
* Ready to use after pre-assembly.
* Efficent and time-saving especially for large area walls where request for repeated castings.
* Can meet different fresh concrete pressure by spacing the timbers and walings.
* Can produce fair-faced concrete finishing surface.
Components
| Components | Description |
| Wall formwork panel | Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size) |
| H20 Timber beam | Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size |
| Steel waling | Double steel channel |
| Flange clamp | Galvanized To connect steel waling and H20 beams |
| Panel strut | Painted |
| Waling connector | Painted, Used for formwork panels alignment |
| Corner connector | Painted, Used for forming inner corner formwork with wedge pins |
Packing
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

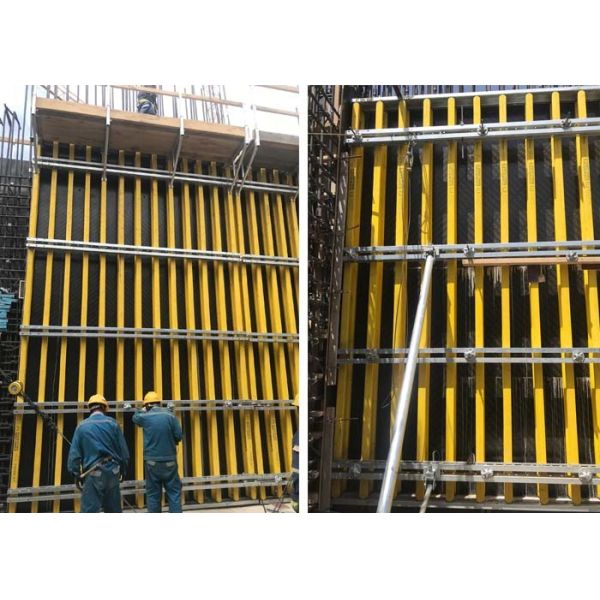

Applications
FAQ
Q 1, Are you a factory or a trading company?
Yes,We are professional factory.
Q 2.Do you have strong techinicans teams?
Yes,We have 9 project designers, 4 product development engineers and 10 technical guidance engineers. The whole team has more than 20 years of engineering experience
Q 3. Do you accept OEM services?
Yes, we could make the customized products according to your drawings.
Q 4. What is your production capacity?
3000Tons per month.
Q 5. Do you have test report?
Yes, we have done many test in Famous university--Hefei University of Technology.
Q 6. How long is your delivery.
Usually 20-25days after deposit confirmed.
