Hydraulic Self-climbing Formwork For Bridge And Super High-rise Building Construction
Outline
The hydraulic auto-climbing formwork system is a wall-attached self-climbing formwork system, which is powered by its own hydraulic lifting system. The formwork system includes hydraulic cylinders, an upper and lower lifting device, which can switch the lifting power to the main bracket or climbing rail. With the power by the hydraulic system, the main bracket and climbing rail are able to climb respectively. Therefore, the complete hydraulic auto-climbing system climbs steadily without crane. No other lifting device is needed when using the hydraulic auto-climbing formwork, which has the advantages of being easy to operate, fast and safe in the climbing process. It is the first-choice formwork system for high-rise building and bridge construction.
Sketch of SCF60
Main system
• ForPro large size timber beam formwork
Plywood/Timber beam/steel waler/walerclamp/lifting bracket.
• Climbing bracket
Horizontal bracket/ vertical profile/ diagonal strut/ vertical Waling/ panel/travelling unit/suspension platform/top platform/ Walerhook bolt.
• Self climbe
Guiding rail /lifting device/suspensionshoe/suspension bolt/safety pin/supporting carriage
• Hydraulic system
Hydraulic cylinder, hydraulic oil line, hydraulic hose connector and hydraulic unit
• Anchoringsystem
High strength screw / climbing cone/ position cone/ embedded anchor rod/sealing sleeve.
Technical Specification
1. Working load, system weight and wind load is entirely supposed by the anchor system, scaffolding is not needed during the construction;
2. A single pouring height can reach to 6 meters, and the formwork can move backward about 700mm;
3. High standard elements can be widely used;
4. The formwork can press the finished concrete tightly to avoid dislocation or leakage.
5. The suspended platform is convenient for removing the anchor system and treating the concrete surface.
Applications
1. Bridge pier

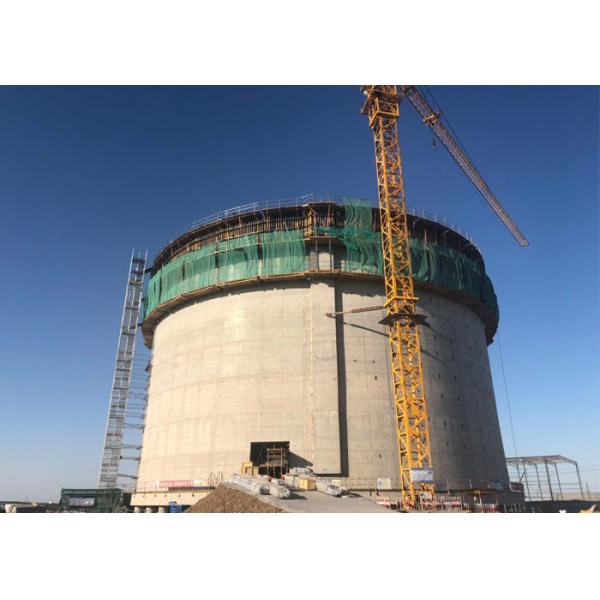

2. LNG
3. Super High-rise Building etc.
Our Services
1. Analysis from initial stage and provide professional advice consultation and formwork planning.
2. Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3. Choose a best propasal to help our clients to win the project.
4. Devise the formwork detailedly according to the winning bidding.
5. Provide formwork design and provides on-site advice and continuous support service.
